JACKS AND PLUGS

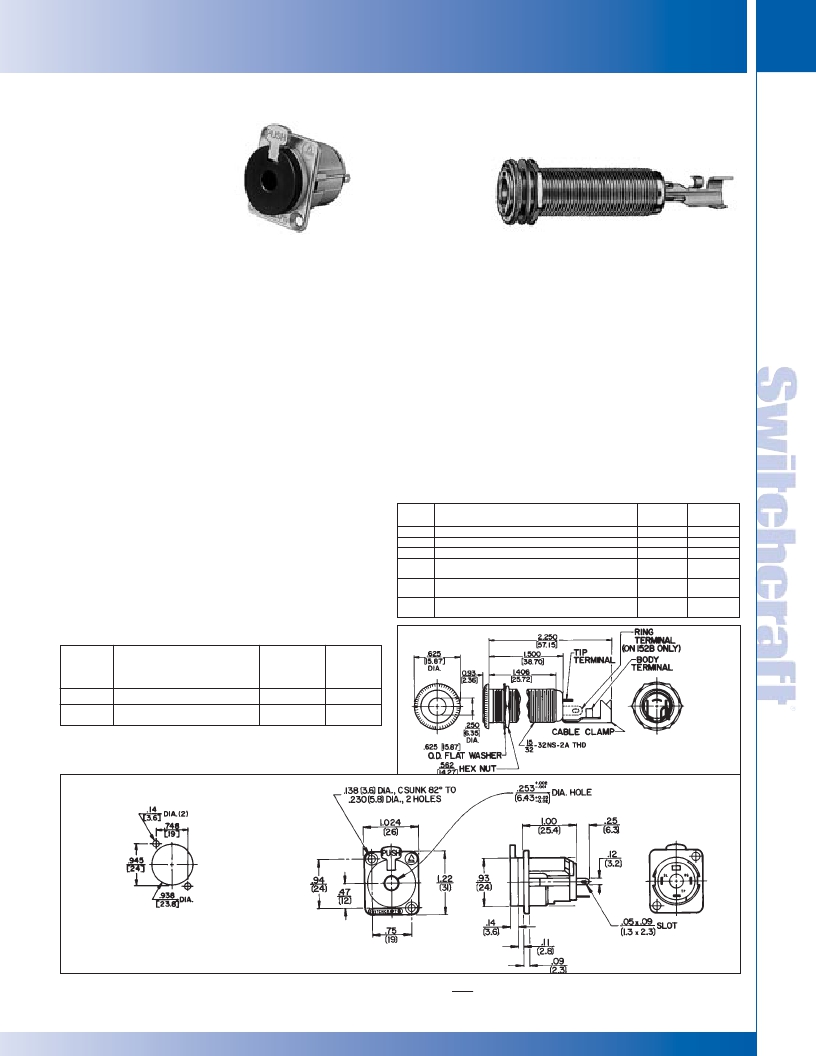

FAX: 773 792-2129 1/4" PHONE JACKS – SERIES E ( LOCKING ) AND THICK PANEL PHONE JACKS
* Please visit the product pages on our website for the most up-to-date product information
1/4" PHONE JACKS (continued)
107
LOCKING
PHONE JACKS
SERIES E
Series E jacks provide stable, secure connections in panels where
shock/vibration or accidental disconnect may occur. Plug locks-in
automatically upon insertion; press “PUSH” tab to unlock and
remove plug. Series E jacks have the same front panel
appearance as Series E Q-G ? audio connectors.
SPECIFICATIONS
MECHANICAL
Life: 10,000 cycles minimum.
ELECTRICAL
Insulation Resistance: 2 x 106 M ? at 500 V DC per
MIL-STD-202, method 302 (initial).
Dielectric Withstanding Voltage: 1,000 V AC (rms).
ENVIRONMENTAL
Thermal Range: -55°C to +85°C (non-operating);
-20°C to +65°C (operating).
Thermal Shock: Per MIL-STD-202, method 107.
THICK PANEL PHONE JACKS
151
Jacks are standard 2- and 3-conductor phone jacks with extra long
threaded bushing for mounting in panels/chassis up to 1.25" thick.
Metal bushing virtually eliminates hum pick-up, and is ideal for electric
guitar and speaker connections. Jacks mate with standard
commercial phone plugs. See plug section for mating plugs. Jacks
mount in a single .469" diameter hole. Rugged cable clamp protects
connections from twisting and pulling stresses.
SPECIFICATIONS
MATERIAL
Mounting Bushing: Nickel-plated copper alloy with knurled flange.
Insulating Spacer: Rigid plastic.
Insulator/Spring Mount: Thermoplastic.
Springs: Copper alloy.
Terminals: Tip: Copper alloy. Ring: (Number 152B only) copper alloy.
Sleeve: Steel, tin-plated.
Hardware: Supplied with one, Number P10531 nickel-plated copper alloy
hex nut, and one, Number P14761 nickel-plated copper alloy flat washer.
Humidity: Per MIL-STD-202, method 106.
Part
Jack
Typical
Salt Spray: Per MIL-STD-202, method 101.
MATERIAL
Shell: Die-cast zinc, with satin nickel-plating. Black chrome over
Number
151
152
152B
153
Description
2-conductor, open circuit, nickel finish
2-conductor, open circuit, brass finish
3-conductor, double open circuit, nickel finish
2-conductor, open circuit, gold-plated springs,
Schematic
I
I
IV
I
Mating Plug
280
280
297
280
nickel-plating on special order.
electro-polish brass finish, 9/16-12 UNC wood threads
Insert and Latch: Thermoplastic, UL 94V-O.
Latch Release: Nickel-plated die-cast zinc.
154
155
3-conductor, double open circuit, gold finish,
no cable clamp
3-conductor, double open circuit, black satin finish,
IV
IV
297
Contact Springs: Tin-plated copper alloy.
Typical
no cable clamp
Part
Jack
Mating
Number
E111L
E112BL
Description
2-cond., open circuit
3-cond., double open circuit
Schematic 1
I
IV
Plug 2
250
267
1. See Jack Schematics, pages 79 and 80
2. See Plugs Section
THICK PANEL PHONE JACKS
RECOMMENDED
PANEL CUTOUT
LOCKING PHONE JACKS, SERIES E
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
